Del-UMG High Frequency X-ray Generator and table


Universal Veterinary Generator and Table Combination

Affordable, State of the Art Generator for Veterinary Practices

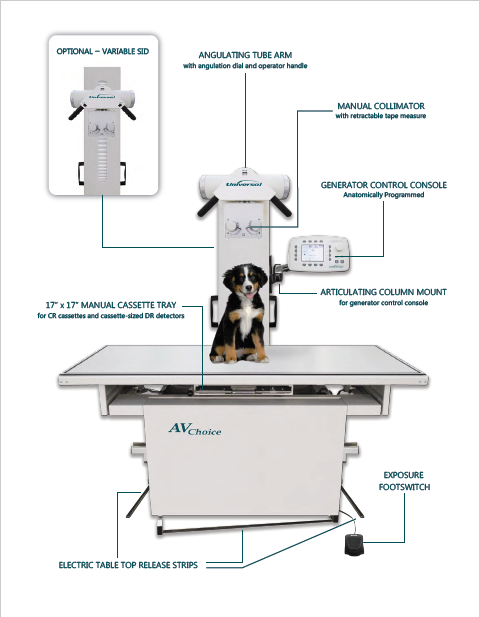

The Universal Veterinary Generator is designed for veterinarians who seek affordability and maximum capability, especially in smaller imaging environments. Equipped with an integrated tube stand with variable SID and an anatomically programmed high-frequency generator, this system provides a comprehensive solution.

Key Features:

  • Angulating Tube Arm: Offers flexibility and precision in imaging.
  • Float Top Table: Available in 2-way or 4-way configurations for enhanced patient positioning.
  • Variable SID Tube Stand: Allows for a greater range of motion, providing technologists with improved positioning capabilities.
  • Ease of Use: Features a perimeter urine trap for easy cleanup and operator foot switch/treadles on all sides for uninterrupted focus on the animal.

Standard AVChoice System:

  • Table: Stationary table top
  • Tube Stand: Fixed SID, 4” to image receptor
  • Generator:
    • Single phase: 30 kW, high frequency, 400mA, 125kVp with anatomical programming
    • Three phase: 32 kW, high frequency, 500mA, 125kVp with anatomical programming
  • X-ray Tube: 140kHu, 125kVp, 1.0-2.0mm focal spots

System Options:

The AVChoice systems offer a variety of component options to meet the specific needs of any veterinary practice.

  • Table Options:
    • 2-way float top
    • 4-way float top
  • Tube Stand Options:
    • Variable SID, 4” vertical range with electric locks
  • Generator Options:
    • 40kW and 50kW generator options available
  • X-ray Tube Options:
    • 200kHu, 125kVp, 0.6-1.5mm focal spots

Upgrade your veterinary practice with the Universal Veterinary System, offering unmatched affordability, capability, and convenience in a compact, all-in-one solution.
