USB Endoscope/Gastroscope

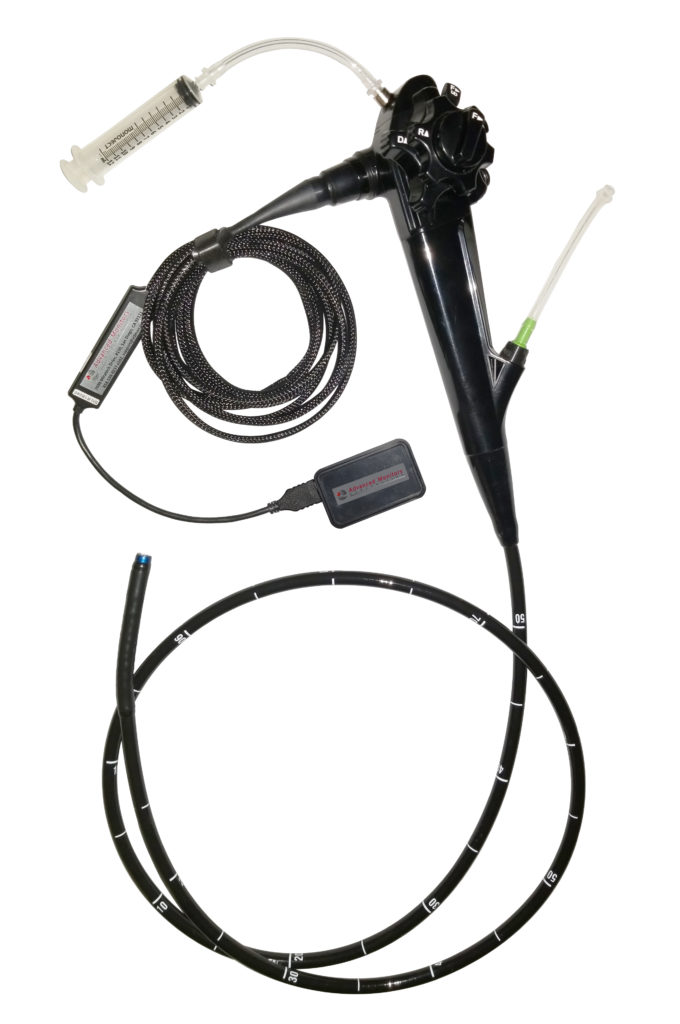

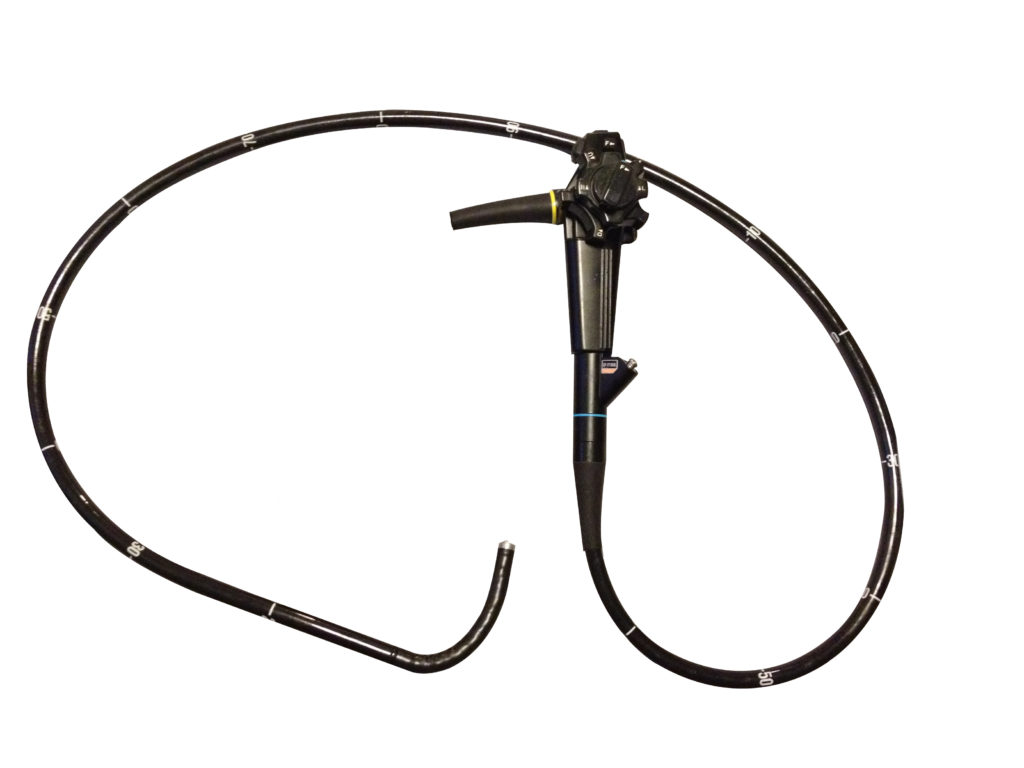

TELE-VIEW USB VIDEO ENDOSCOPES AND GASTROSCOPES

The Tele-View USB Endoscopes and Gastroscopes are easily portable,  ‘plug and play’ endoscope systems. With this innovative design, there is no need for a processor, light processor, special monitor or a storage rack.  The insertion tube includes a high resolution camera sensor, super-bright LED lights, a working channel, an irrigation channel to clean the lens and an air-water channel for lavage or insufflation. Now you can quickly and easily complete endoscopic procedures without having to carry awkward and bulky equipment!

Each Tele-View USB Endoscope/Gastroscope has the following features:

  • High Resolution
  • Super Bright LED Illumination – Robust with no fibers to break
  • Works with any Windows Computer/Tablet – All needed software is included
  • Save Video and Images to computer
  • 4-Way Articulation
  • Irrigation Channel to Clean Camera Lens
  • Working Channel for Biopsy or Foreign Body Removal
  • Air-Water Channel for Lavage or Insufflation
  • Comes in 1.0m, 1.5m, 3.0m, and 3.5m lengths
  • Comes in 8.7mm, 9.8mm and 12.6mm diameters
  • Weighs only 2 pounds (1 kilo)
  • Made in the USA

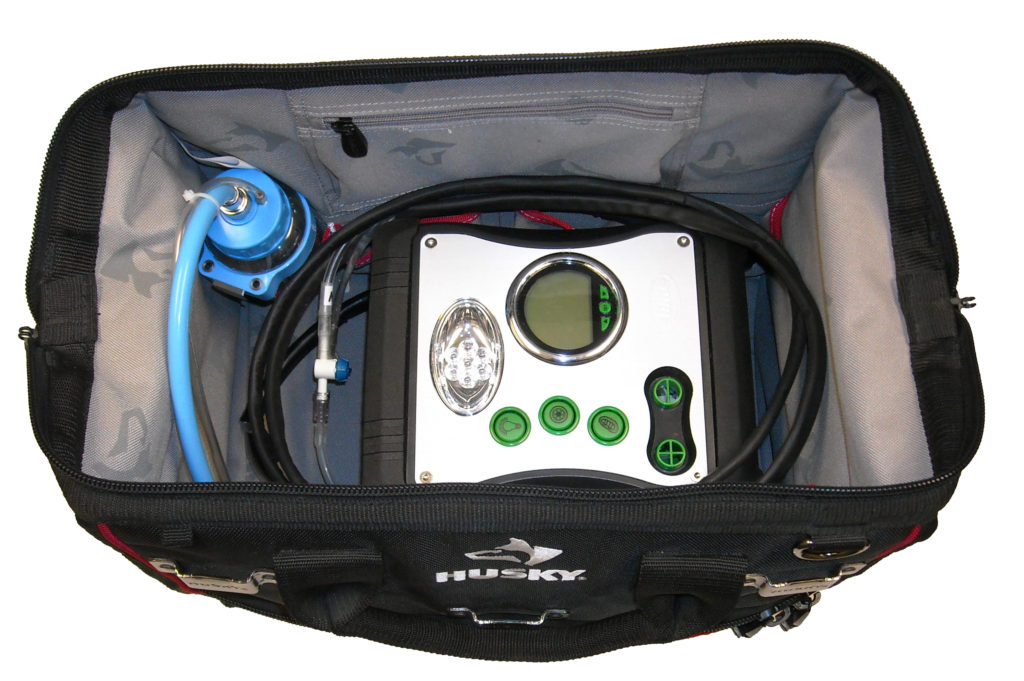

  • Optional Air-Water Pump
  • Optional endoscope accessories such as forceps and channel guides available.

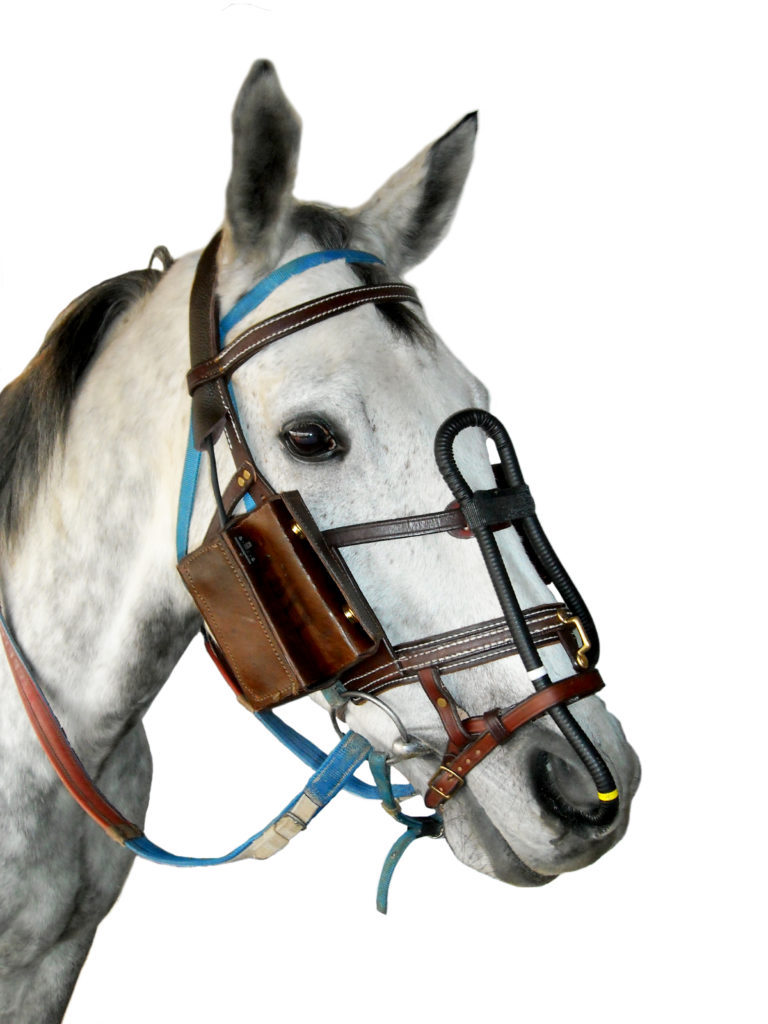

TELE-VIEW EQUINE EXERCISE ENDOSCOPE

Dynamic Endoscopy is the Gold Standard for Diagnosing Upper Airway Restriction Problems

The Tele-View Dynamic Equine Exercise Endoscope is an easy-to-use method of analyzing upper airway restriction problems during exercise. The Endoscope System is lightweight and harness-mounted and can give dynamic endoscopic results in as little as 30 minutes.

  • Gold Standard for Diagnosing Upper Airway Restriction Problems
  • Results in as Little as 30 Minutes
  • Records High Quality Video & Audio
  • Share with Clients and Trainers
  • Utilize During Normal Workouts with Standard Training Equipment
  • Safer Than Treadmills
  • Affordable

System Includes:

  • Custom-Built Harness
  • Custom Insertion Tube
  • Custom Recording Camera
  • Manual & Automatic Irrigation Flushing System
  • Digital Video Recorder with SD Card
  • Hard-Sided Foam-Lined Travel Case
  • USB & Video Cables

Functions:

  • Real-Time Imaging
  • Record
  • Snapshot
  • Video Output Format: NTSC/PAL
  • Digital Video Recorder Battery: Rechargeable Li-Polymer 3.7V
  • Digital Video Recorder Power Supply: AC 100-240V

Specifications:

  • Harness Weight: 4 lbs (1.8 Kg)
  • Endoscope Cable Width: 9/16
  • Endoscope Cable Length: 42” (106 cm), Custom Lengths Available
  • Light Source: High Intensity White LEDs
  • Batteries: Rechargeable 6V NiMH
  • Power Supply: AC 110v or 220v
  • Working Temperature: 32º – 140ºF (0º – 60ºC)
  • Video Screen: 3.5” High Resolution TFT
  • SD Card: 4 GB
